Video server service

Contents

Video server service allows to record and manipulate streams from video sensors.

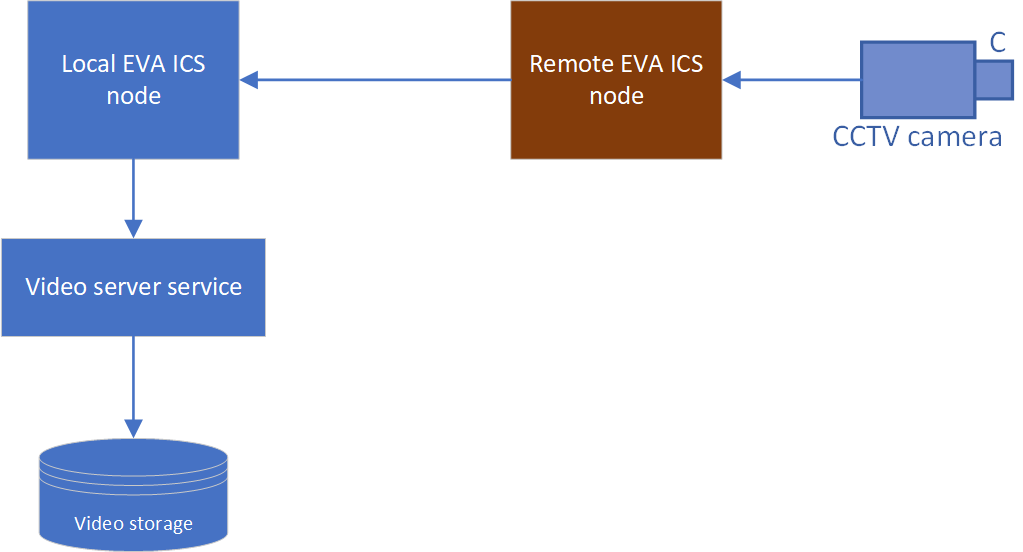

The video server can record local and remote video streams.

Functionality limitations

The service is not open-source and is included in EVA ICS Enterprise. Despite being a part of EVA ICS Enterprise, it is allowed to use service instances without a license, with the following limitations:

The maximum number of recorded streams is limited to 2

Preparing the system

The service requires GStreamer for proper functioning. Install GStreamer and its plugins (example for Debian/Ubuntu):

sudo apt install -y gstreamer1.0-tools \
        gstreamer1.0-plugins-base \
        gstreamer1.0-plugins-good \
        gstreamer1.0-plugins-bad \
        gstreamer1.0-plugins-ugly \
        gstreamer1.0-libav \
        gstreamer1.0-x \
        gstreamer1.0-alsa \
        gstreamer1.0-pulseaudio

Video storage

The video recording server requires PostgreSQL server.

Managing recorded streams

The stream recordings can be managed with eva-shell using the video rec command group:

eva video rec create - create a video recording
eva video rec list - list video recordings
eva video rec edit - edit a video recording configuration
eva video rec enable - enable (start) a video recording
eva video rec disable - disable (stop) a video recording
eva video rec destroy - destroy a video recording
eva video rec export - export video recording configuration(s) to a deployment file
eva video rec deploy - deploy video recording(s) from a deployment file
eva video rec undeploy - undeploy video recordings(s) using a deployment file

The streams can be also automatically deployed/undeployed using IaC and deployment.

Warning

When a video recording is destroyed, all recorded video data is permanently deleted.

The service also provides rich API for various automation scenarios.

Viewing video recordings

Use Operation centre to view video recordings. See OpCentre CCTV for more details.

Note

To view video recordings in OpCentre, the service instance must be deployed as eva.videosrv.default

Video recoding FPS

Video recording FPS (frames per second) is calculated dynamically based on the actual time difference between frames. In case of unstable communications between the source and the video server service, dynamic video recording rules, the FPS may be not convenient to playback. In such cases, it is possible to fix the FPS to a specific value, using the sensor metadata field:

# ....
meta:
  fps: 30 # fix the sensor FPS to 30 frames per second
# ....

Extracting video to a file

To extract a video recording from the database, EVA ICS GStreamer plugin can be used. The following example extracts a video recording for a stream sensor sensor:s0 from 2025-09-13 00:48:00 +02:00 to 2025-09-13 01:49:00 +02:00 and saves it to output.mkv file:

gst-launch-1.0 -v evavideosrvsrc \
 oid=sensor:s0 t-start='2025-09-13 00:48:00 +02:00' t-end='2025-09-13 01:49:00 +02:00' ! \
 matroskamux ! filesink location=output.mkv

Setup

Use the template EVA_DIR/share/svc-tpl/svc-tpl-videosrv.yml:

# Video server service
command: svc/eva-videosrv
bus:
  path: var/bus.ipc
config:
  buf_ttl_sec: 1
  # local database
  db: postgres:///eva?host=/var/run/postgresql&user=eva
  # remote database
  #db: postgres://USER:PASSWORD@HOST/DB
  # custom gstreamer decode pipelines (required for decoding methods, e.g. "rec.image")
  #decode_pipeline:
    #h264: h264parse ! openh264dec ! videoconvert
    #h265: h265parse ! avdec_h265 ! videoconvert
    #av1: av1dec ! videoconvert
  panic_in: 1
  queue_size: 8192
user: eva

Create the service using eva-shell:

eva svc create eva.videosrv.1 /opt/eva4/share/svc-tpl/svc-tpl-videosrv.yml

or using the bus CLI client:

cd /opt/eva4
cat DEPLOY.yml | ./bin/yml2mp | \
    ./sbin/bus ./var/bus.ipc rpc call eva.core svc.deploy -

(see eva.core::svc.deploy for more info)

EAPI methods

See EAPI commons for the common information about the bus, types, errors and RPC calls.

Crec.pull

Description	Pull video recordings
Parameters	required
Returns	Cursor for pulling video frames with u field set to the cursor UUID

Parameters
Name	Type	Description	Required
i	String	Stream sensor OID	yes
t_start	f64	Start timestamp (seconds since epoch)	no
t_end	f64	End timestamp (seconds since epoch)	no
limit	u32	Maximum number of frames to return	no

Nrec.pull

Description	Pull next video frames from a cursor
Parameters	required
Returns	A next video frame from the cursor or null if the end is reached

Parameters
Name	Type	Description	Required
u	String/Vec<u8>	Cursor UUID	yes

rec.create

Description	Create video recording
Parameters	required
Returns	nothing

Parameters
Name	Type	Description	Required
i	String	Stream sensor OID	yes
enabled	bool	Enable/disable recording	no
keep	f64	Keep time (seconds)	no

rec.deploy

Description	Deploy video recordings
Parameters	required
Returns	nothing

Parameters
Name	Type	Description	Required
video_recordings	Vec<struct>	Video recording configurations	yes

rec.destroy

Description	Destroy a video recording
Parameters	required
Returns	nothing

Parameters
Name	Type	Description	Required
i	String	Stream sensor OID	yes

rec.disable

Description	Disable video recording
Parameters	required
Returns	nothing

Parameters
Name	Type	Description	Required
i	String	Stream sensor OID	yes

rec.enable

Description	Enable video recording
Parameters	required
Returns	nothing

Parameters
Name	Type	Description	Required
i	String	Stream sensor OID	yes

rec.get_config

Description	Get video recording configuration
Parameters	required
Returns	Recording configuration

Parameters
Name	Type	Description	Required
i	String	Stream sensor OID	yes

Return payload example:

{
    "enabled": true,
    "keep": 86400000.0,
    "oid": "sensor:s0"
}

rec.image

Description	Retrieve an image from a video recording
Parameters	required
Returns	Vec<u8> of the image data (PNG) or null if no image is found

Parameters
Name	Type	Description	Required
i	String	Stream sensor OID	yes
t	f64	Timestamp (seconds since epoch)	yes
max_delta	f64	Maximum time difference (seconds) from the requested timestamp	no

rec.info

Description	Get video recording information
Parameters	required
Returns	Video recording information

Parameters
Name	Type	Description	Required
i	String	Stream sensor OID	yes
t	f64	Timestamp (seconds since epoch) to get information for	no
limit	u32	Maximum number of frames to analyze	no

Return payload example:

{
    "format": 10,
    "fps": 60,
    "height": 480,
    "width": 640
}

rec.list

Description	List video recordings
Parameters	none
Returns	List of video recordings

Return payload example:

[
    {
        "enabled": true,
        "keep": 86400000.0,
        "oid": "sensor:s0"
    },
    {
        "enabled": false,
        "keep": 30.0,
        "oid": "sensor:s1"
    }
]

rec.segmented

Description	Retrieve a segmented video from a video recording
Parameters	required
Returns	Array of frames with metadata. The first array element is always a key frame at or after the requested timestamp. The frames are returned either until the next key frame or until the limit_max is reached. If limit_max is not specified, it is set as limit_min + 1000.

Parameters
Name	Type	Description	Required
i	String	Stream sensor OID	yes
t	f64	Timestamp (seconds since epoch)	yes
limit_min	u32	Minimum number of frames to include in the segment	yes
limit_max	u32	Maximum number of frames to include in the segment	no

Return payload example:

[
    {
        "data": [
            69,
            86,
            83,
            235,
            174,
            186,
            235,
            174,
            186
        ],
        "key_unit": true,
        "t": 1755203121.461881
    },
    {
        "data": [
            69,
            86,
            83,
            1,
            10,
            128,
            2,
            224,
            1,
            0,
            0,
            0,
            0
        ],
        "key_unit": false,
        "t": 1755203121.478216
    },
    {
        "data": [
            69,
            86,
            83,
            1,
            10,
            128,
            2,
            224,
            1,
            0,
            0
        ],
        "key_unit": false,
        "t": 1755203121.494861
    }
]

rec.undeploy

Description	Undeploy video recordings
Parameters	required
Returns	nothing

Parameters
Name	Type	Description	Required
video_recordings	Vec<struct>	Video recording configurations	yes

HTTP API

The service provides certain methods via extra calls (the methods must be called e.g. as x::eva.videosrv.default::summary)

To use HTTP API methods, a user must have read or write access to video sensors.

rec.image

Description	Retrieve an image from a video recording
Parameters	required
Returns	Vec<u8> of the image data (PNG) or null if no image is found

Parameters
Name	Type	Description	Required
k	String	valid API key/token	yes
i	String	Stream sensor OID	yes
t	f64	Timestamp (seconds since epoch)	yes
max_delta	f64	Maximum time difference (seconds) from the requested timestamp	no

http

POST /jrpc HTTP/1.1
accept: application/json
content-type: application/json
host: localhost:7727

{
  "id": 1,
  "jsonrpc": "2.0",
  "method": "rec.image",
  "params": {
    "i": "sensor:s0",
    "k": "secretkey",
    "t": 1625079600.0
  }
}

curl

curl -i -X POST http://localhost:7727/jrpc -H "Accept: application/json" -H "Content-Type: application/json" --data-raw '{"id": 1, "jsonrpc": "2.0", "method": "rec.image", "params": {"i": "sensor:s0", "k": "secretkey", "t": 1625079600.0}}'

wget

wget -S -O- http://localhost:7727/jrpc --header="Accept: application/json" --header="Content-Type: application/json" --post-data='{"id": 1, "jsonrpc": "2.0", "method": "rec.image", "params": {"i": "sensor:s0", "k": "secretkey", "t": 1625079600.0}}'

httpie

echo '{
  "id": 1,
  "jsonrpc": "2.0",
  "method": "rec.image",
  "params": {
    "i": "sensor:s0",
    "k": "secretkey",
    "t": 1625079600.0
  }
}' | http POST http://localhost:7727/jrpc Accept:application/json Content-Type:application/json

python-requests

requests.post('http://localhost:7727/jrpc', headers={'Accept': 'application/json', 'Content-Type': 'application/json'}, json={'id': 1, 'jsonrpc': '2.0', 'method': 'rec.image', 'params': {'i': 'sensor:s0', 'k': 'secretkey', 't': 1625079600.0}})

response

HTTP/1.1 200 OK
cache-control: no-cache, no-store
content-length: 82
content-type: application/json
date: Thu, 13 Aug 2021 00:00:00 GMT
expires: 0
pragma: no-cache

{
    "id": 1,
    "jsonrpc": "2.0",
    "result": "image data (bytes) or null"
}

rec.info

Description	Get video recording information
Parameters	required
Returns	Video recording information

Parameters
Name	Type	Description	Required
k	String	valid API key/token	yes
i	String	Stream sensor OID	yes
t	f64	Timestamp (seconds since epoch) to get information for	no
limit	u32	Maximum number of frames to analyze	no

http

POST /jrpc HTTP/1.1
accept: application/json
content-type: application/json
host: localhost:7727

{
  "id": 1,
  "jsonrpc": "2.0",
  "method": "rec.info",
  "params": {
    "i": "sensor:s0",
    "k": "secretkey"
  }
}

curl

curl -i -X POST http://localhost:7727/jrpc -H "Accept: application/json" -H "Content-Type: application/json" --data-raw '{"id": 1, "jsonrpc": "2.0", "method": "rec.info", "params": {"i": "sensor:s0", "k": "secretkey"}}'

wget

wget -S -O- http://localhost:7727/jrpc --header="Accept: application/json" --header="Content-Type: application/json" --post-data='{"id": 1, "jsonrpc": "2.0", "method": "rec.info", "params": {"i": "sensor:s0", "k": "secretkey"}}'

httpie

echo '{
  "id": 1,
  "jsonrpc": "2.0",
  "method": "rec.info",
  "params": {
    "i": "sensor:s0",
    "k": "secretkey"
  }
}' | http POST http://localhost:7727/jrpc Accept:application/json Content-Type:application/json

python-requests

requests.post('http://localhost:7727/jrpc', headers={'Accept': 'application/json', 'Content-Type': 'application/json'}, json={'id': 1, 'jsonrpc': '2.0', 'method': 'rec.info', 'params': {'i': 'sensor:s0', 'k': 'secretkey'}})

response

HTTP/1.1 200 OK
cache-control: no-cache, no-store
content-length: 138
content-type: application/json
date: Thu, 13 Aug 2021 00:00:00 GMT
expires: 0
pragma: no-cache

{
    "id": 1,
    "jsonrpc": "2.0",
    "result": {
      "format": 10,
      "fps": 60,
      "height": 480,
      "width": 640
    }
}

rec.segmented

Description	Retrieve a segmented video from a video recording
Parameters	required
Returns	Array of frames with metadata

Parameters
Name	Type	Description	Required
k	String	valid API key/token	yes
i	String	Stream sensor OID	yes
t	f64	Timestamp (seconds since epoch)	yes
limit_min	u32	Minimum number of frames to include in the segment	yes
limit_max	u32	Maximum number of frames to include in the segment	no

http

POST /jrpc HTTP/1.1
accept: application/json
content-type: application/json
host: localhost:7727

{
  "id": 1,
  "jsonrpc": "2.0",
  "method": "rec.segmented",
  "params": {
    "i": "sensor:s0",
    "k": "secretkey",
    "limit_min": 100,
    "t": 1625079600.0
  }
}

curl

curl -i -X POST http://localhost:7727/jrpc -H "Accept: application/json" -H "Content-Type: application/json" --data-raw '{"id": 1, "jsonrpc": "2.0", "method": "rec.segmented", "params": {"i": "sensor:s0", "k": "secretkey", "limit_min": 100, "t": 1625079600.0}}'

wget

wget -S -O- http://localhost:7727/jrpc --header="Accept: application/json" --header="Content-Type: application/json" --post-data='{"id": 1, "jsonrpc": "2.0", "method": "rec.segmented", "params": {"i": "sensor:s0", "k": "secretkey", "limit_min": 100, "t": 1625079600.0}}'

httpie

echo '{
  "id": 1,
  "jsonrpc": "2.0",
  "method": "rec.segmented",
  "params": {
    "i": "sensor:s0",
    "k": "secretkey",
    "limit_min": 100,
    "t": 1625079600.0
  }
}' | http POST http://localhost:7727/jrpc Accept:application/json Content-Type:application/json

python-requests

requests.post('http://localhost:7727/jrpc', headers={'Accept': 'application/json', 'Content-Type': 'application/json'}, json={'id': 1, 'jsonrpc': '2.0', 'method': 'rec.segmented', 'params': {'i': 'sensor:s0', 'k': 'secretkey', 'limit_min': 100, 't': 1625079600.0}})

response

HTTP/1.1 200 OK
cache-control: no-cache, no-store
content-length: 1077
content-type: application/json
date: Thu, 13 Aug 2021 00:00:00 GMT
expires: 0
pragma: no-cache

{
    "id": 1,
    "jsonrpc": "2.0",
    "result": [
    {
        "data": [
            69,
            86,
            83,
            235,
            174,
            186,
            235,
            174,
            186
        ],
        "key_unit": true,
        "t": 1755203121.461881
    },
    {
        "data": [
            69,
            86,
            83,
            1,
            10,
            128,
            2,
            224,
            1,
            0,
            0,
            0,
            0
        ],
        "key_unit": false,
        "t": 1755203121.478216
    },
    {
        "data": [
            69,
            86,
            83,
            1,
            10,
            128,
            2,
            224,
            1,
            0,
            0
        ],
        "key_unit": false,
        "t": 1755203121.494861
    },
    {
        "data": [
            69,
            86,
            83,
            1,
            10,
            128
        ],
        "key_unit": false,
        "t": 1755203121.511463
    }
    ]
}
