Flashing
Contents
If RoboPLC Manager is installed, it is possible to flash the program remotely via either its web interface or using robo CLI program. Note that the program can be flashed only when the host is in CONFIG mode.
Note
RoboPLC Manager is not a mandatory component. The program can be uploaded/run using any custom method.
Installing RoboPLC CLI
The robo CLI tool is available in cargo package roboplc-cli:
cargo install roboplc-cli
The tool should be installed on the client machine, where the Rust project is being developed. It is also possible to include the tool into CI/CD pipelines.
Configuring
The program can be used with no configuration. In this case all options are provided either via system variables ROBOPLC_URL, ROBOPLC_KEY or via command-line arguments.
The priority is the following:
Command-line arguments (higher)
Environment variables
Configuration file (lower)
Configuration file
Note
When a new project is created with robo new command, it is possible to specify the remote url, key and timeout. If specified, the values are stored in the robo.toml file.
The file must be placed into the root directory of the project and named robo.toml. If a project has no Cargo.toml or its present in a subfolder, robo.toml from the current directory is used. The following options are available:
[remote]
url = "http://IP_OR_HOST:7700"
key = "roboplc"
#timeout = 60
[build]
#cargo = "cargo"
#target = "x86_64-unknown-linux-gnu"
#cargo-args = "--some-extra --cargo-arguments"
#[build.env]
#DOCKER_OPTS = "-v /some/folder:/some/folder"
[build-custom]
#command = "some complex command to build"
#file = "target file to upload"
remote.url URL of the RoboPLC Manager (with no trailing slashes etc.)
remote.key host management key
remote.timeout max API timeout (keep it high enough for binary uploading)
build.cargo cargo executable. If not specified, cross is used if present in the PATH, otherwise the compilation falls back to the default cargo
build.target the remote target architecture. If not specified, the host architecture is tried to be detected automatically, using RoboPLC Manager API
build.env additional environment variables for the build process. E.g. if certain crates are imported from local folders, specify DOCKER_OPTS to mount the folder into the container as: DOCKER_OPTS = “-v /some/folder:/some/folder”
Warning
As the file contains the remote key, make sure it has got proper permissions and do not publish it to public source repositories.
Cross-compilation
For cross compilation, it is recommended to install cross:
cargo install cross
Custom compilation
A completely custom compilation can be done using the following settings
[build-custom]
command = "some complex command to build"
file = "target file to upload"
If build-custom section is present and command field is specified, build section is ignored.
Flashing
The program can be flashed using the following command:
robo flash
The program is automatically compiled for the remote target (release) and uploaded to the remote host.
use --run (short: -r) option to automatically start the program after flashing
use --force (short: -f) option to switch the remote into CONFIG mode before flashing.
Debugging/testing
The command
robo x
Executes the program on the remote host in a virtual terminal and outputs the result to the local console. This mode can be useful for debugging/testing purposes.
Note
The program does not capture the local console standard input on Microsoft Windows.
This mode also accepts additional command-line arguments, which are passed to the program:
robo x -- -a -b -c arg1 arg2
Warning
It is not recommended to execute programs remotely on live production systems.
To set environment variables, use either -e/–env option, or specify them in the robo.toml file:
[x.env]
VAR1 = "value1"
VAR2 = "value2"
Switching between remotes
The file robo.toml contains the primary remote where the program is flashed. Sometimes it is useful to switch between multiple remotes, e.g. to test the program on different devices.
RoboPLC CLI allows to create a list of the remotes in a file named .robo-global.toml. The file must be placed in the home directory of the user.
Example:
[remote.system1]
url = "http://192.168.20.200:7700"
key = "secret1"
[remote.other]
url = "http://192.168.20.201:7700"
key = "secret2"
When executing RoboPLC commands, specify the remote name instead of the URL, e.g.:
robo -U system1 stat
robo -U system1 flash
Warning
As the file contains remote keys, make sure it has got proper permissions.
Program rollback
Note
This feature requires RoboPLC Professional.
To check the versions available, execute a command:
robo stat --show-versions
The output is similar to:
Mode RUN
PID 2016131
Mem 66322432
Up 2
+---------+--------+---------------------------+
| Program | Exists | Created |
+---------+--------+---------------------------+
| current | YES | 2025-01-10T11:15:54+01:00 |
+---------+--------+---------------------------+
| prev.0 | YES | 2025-01-10T11:05:44+01:00 |
+---------+--------+---------------------------+
The system keeps a single previous version of the program, “current” is the current active one, and “prev.0” is the previous one.
In case of a problem with the current program, it is possible to quickly roll back to the previous:
robo rollback
The command accepts the same flags as the flash: the rollback procedure can be forced, without putting the system into CONFIG mode, the rolled back program can be started automatically etc.

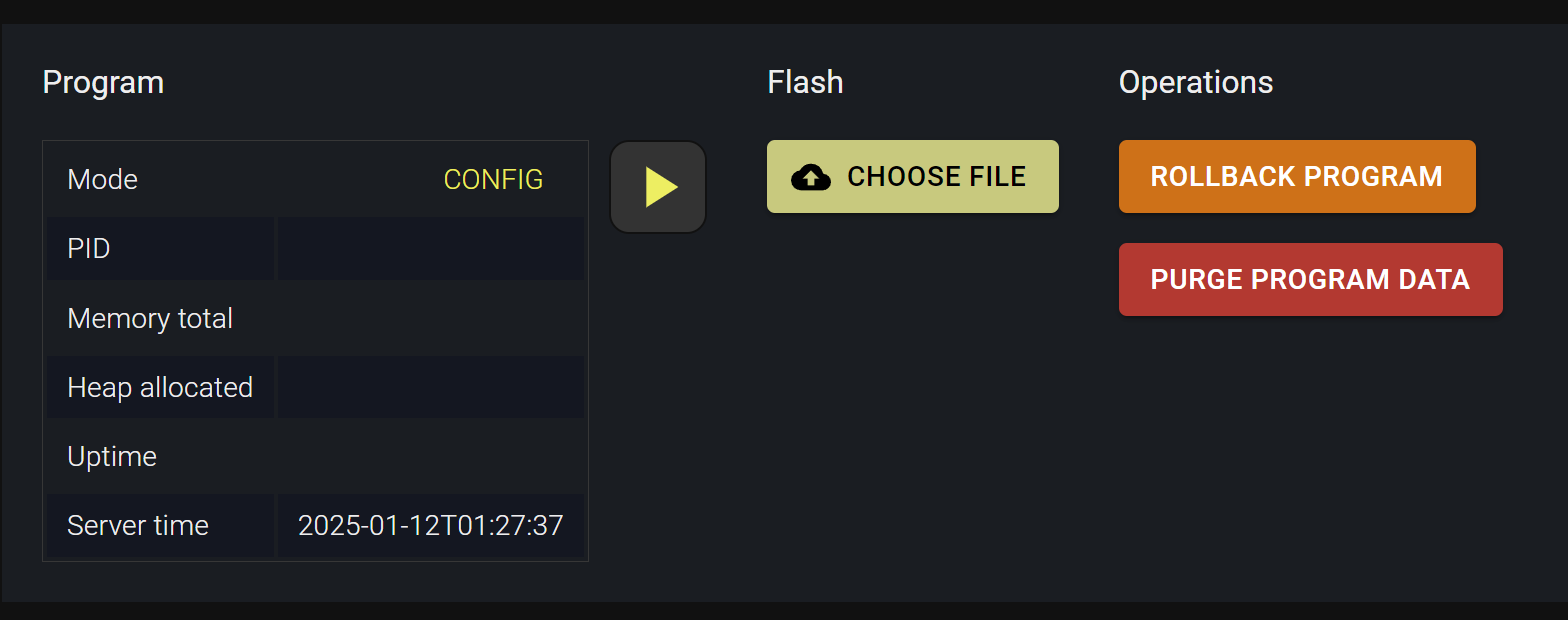

The rollback procedure can be also performed in RoboPLC Manager web interface. To roll back using the web interface, the system must be in CONFIG mode.
Warning
When a program is rolled back, the current version is replaced with the previous one. Backup of the current version is not performed.
Program live updates
Note
This feature requires RoboPLC Professional.
Certain mission-critical configurations may require the system to be updated in live mode, without stopping the program. When a live update is performed, the program is not restarted with systemd but reloads its executable file. This can save up to dozens, sometimes hundreds of milliseconds and minimize the program downtime.
Live update is available for both flashing and rollback commands. Live update can be performed from command-line only.
Preparing the program code to handle live updates
Despite the downtime is minimized as much as possible, the program starts from the beginning, so it is important to save the current state before performing the live update.
Code example. Create a live update handler function:
fn live_update_handler(
context: &Context<Message, Variables>,
) -> roboplc::controller::HandlerResult {
// get the persistent state lock
let data = context.variables().persistent_data.lock();
// save the state
roboplc::state::save(STATE_FILE, &*data)?;
// forget the lock to freeze all program workers during the live update
// process
std::mem::forget(data);
// in case if an error is returned, the live update process is aborted
Ok(())
}
Instead of using register_signals, use registers_signals_with_handlers when launching the controller:
controller.register_signals_with_handlers(|_| {}, live_update_handler, SHUTDOWN_TIMEOUT)?;
controller.block();
Performing the live update
Execute robo flash or robo rollback with –live option:
robo flash --live
Options –force and –run are not required, as the system is assumed to be in RUN mode.
In case if the program is not running, a regular flashing is performed, equal to robo flash –force –run.
Warning
In rarely cases if the program fails to reload itself, it panics immediately. As the program file is overridden during the live update, the client must immediately execute either rollback or flash (--force option is recommended) to restore the previous working version.
The client can also try running live update again, which is equal to flashing with the --force and --run options.
Technical details
When the live update is performed, the current program file is forcibly replaced, then the active program process receives SIGUSR2 signal. The signal immediately launches the live update handler function and in case of no errors, calls reload_executable method.
The method determines the current program executable file and reloads it with execvp system call.
Despite the live updates are supported by RoboPLC Professional only, the feature is technically available and still can be used in custom deployment environments in RoboPLC community edition.
