Alarm service

Requires EVA ICS Enterprise.

Alarms service allows operator to deal with alarm events happened on EVA ICS nodes.

Functionality limitations

The service is not open-source and is included in EVA ICS Enterprise. Despite being a part of EVA ICS Enterprise, it is allowed to use service instances without a license, with the following limitations:

  • The maximum number of alarms is limited to 10

  • The service is limited to a local node, cloud alarms are not supported

Architecture

The service implements ANSI/ISA 18.2 alarm management standard and allows to deal with alarms on both local and remote nodes.

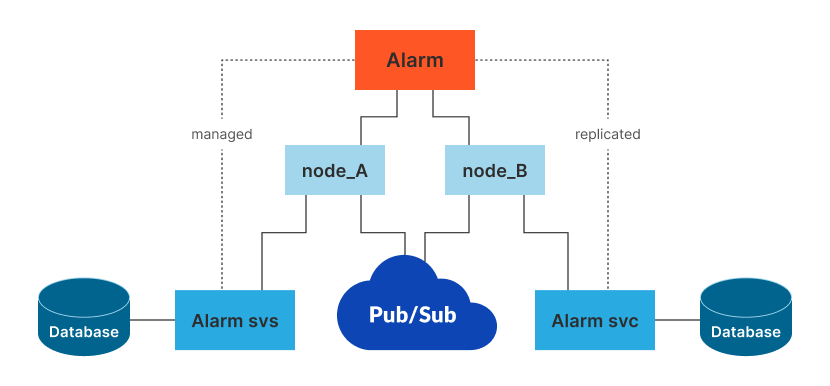

Alarms architecture

Each alarm is represented by a lvar item. The service manages lvars and allows operators to perform standard alarm actions, such as getting alarm state/summary/history, acknowledging, shelving, etc.

There are two kinds of alarms: managed and regular. A managed alarm means an alarm, configured on a local node. Such alarm is allowed to be set in any state, using either internal rules or external scenarios.

In addition to the internal rule engine, the service provides a flexible EAPI commons interface which allows system integrators to create complex alarm setups.

Alarm UI

Alarms can be managed in Operation centre or in custom HMI applications.

Terminology

The tables provided below describe service data types and input/output codes.

Alarm space

An alarm space is defined with prefix service configuration field (the default is alarm/default). Alarm service instances which operate in the same space work with the same set of alarms.

Warning

It is highly recommended to use a single service instance per a node with the same alarm space to avoid conflicts.

Alarm operations

ISA 18.2 defines the following alarm operations:

Code

Name

Description

TT

Trigger

Trigger an alarm

TL

Latch

Trigger + latch alarm

SS

Shelve

Shelve (suspend) an alarm

US

Unshelve

Unshelve (resume) an alarm

CC

Clear

Clear an alarm

SD

Suspend-by-design

Suspend an alarm (do not accept triggers)

RD

Resume-by-design

Resume an alarm (accept triggers)

AA

Acknowledge

Acknowledge an alarm

OS

Out-of-service

Put an alarm out of service

IS

In-service

Put an alarm in service

  • Triggered alarms can be acknowledged when active, if a clear operation is applied, the alarm is removed from the active state.

  • Latched alarms are triggered and latched, they must be acknowledged even if a clear operation is applied.

  • Shelved alarms are excluded from the alarm summary, however they still can be triggered/cleared in the background.

  • Suspended-by-design operation is applied when an alarm source is down (e.g. PLC is shut down) so the assigned rules may produce trigger events which should be ignored. This operation can be applied by an external scenario or program only.

  • Out-of-service operation means the alarm source is down and it is unable to determine is the alarm is active or not. E.g. an alarm is triggered by a temperature sensor. Out of service means the sensor is down and the current temperature is unknown.

Sources and source kinds

Each alarm operation must include a source name and a source kind. Source name is a string. HTTP API sets the source name to the login of the user who performs the operation. External scenarios can use any custom source names or leave the source field empty (use an empty string).

Source kinds are coded as the following:

Code

Description

U

User operation

P

Program operation

R

Used by an internal rule system

Alarm controls

Each service instance automatically crates a control lmacro which is used to send operator control commands to alarms. As lmacros are cloud-wide accessible, it is possible to control alarms on both local and remote nodes.

E.g. a service with alarm space alarm/default creates a control lmacro with OID: lmacro:alarm/default/NODE_NAME/control. where NODE_NAME is the system name of the current node.

The scenario accepts the following parameters (all are mandatory):

Name

Type

Description

alarm_oid (i)

String

Alarm lvar OID

command (cmd)

String

Command code

source_kind (sk)

String

Source kind

source (src)

String

Source name

Unlike alarm operations, alarm control commands can be applied to any alarm in a cloud but the list of allowed operations is restricted. The following command codes are accepted:

  • AA - Acknowledge an alarm

  • SS - Shelve (suspend) an alarm

  • US - Unshelve (resume) an alarm

Alarm states

An alarm lvar value contains a set of fields used to process alarm logic. However when a state method is called, the value is contracted to the following fields which represent the current alarm state:

  • active - A boolean value, which is set to true if the alarm is triggered, triggered+latched, latched (triggered+latched, then cleared but not acknowledged) or out-of-service.

  • current - Contains the current alarm state code:

Code

Name

Description

CC

Cleared

The alarm is cleared (default state)

TL

Triggered+latched

The alarm is triggered and latched

LL

Latched

The alarm is latched

TT

Triggered

The alarm is triggered

OS

Out-of-service

The alarm is out of service

AA

Acknowledged

The alarm is acknowledged

SS

Shelved

The alarm is shelved

SD

Suspended-by-design

The alarm is suspended by design

Alarm subscriptions

The following kinds are supported:

Code

Description

M

E-mail

When a subscription method is called, a notification is sent to the subscribed user when an alarm operation is applied. It is recommended to subscribe at least to the following operations: TT, TL, OS.

Note that triggered and triggered + latched alarm operations are different, despite the user may see the same notification.

If an alarm or user is deleted, its subscriptions are kept so if a new alarm with the same OID/user with the same login is created, the subscriptions are restored.

Note

Alarm subscriptions are processed by the node where the user was logged in and created the subscription.

Defining alarms

The alarms can be deployed either with IaC and deployment or by calling alarm.deploy EAPI method directly. It also possible to manage alarms with eva-shell commands.

An alarm payload example:

alarms:
  # a mandatory alarm group
  group: test
  # a mandatory alarm ID
  id: AL001
  # a mandatory alarm level (0-255)
  level: 20
  # an optional alarm description
  description: "test alarm"
  # an optional configuration
  - config:
      # optional delayed alarm configuration
      delay:
        # delay for out-of-service state (seconds). If in-service operation
        # is applied during the delay, the out-of-service operation is
        # aborted.
        oos: 1.0
        # delay for triggres (seconds). If the alarm is cleared during the
        # delay, the trigger is aborted.
        trig: 1.0
      # internal rules, processed one-by-one
      rules:
      # an optional bit parameter to process value bit number
      - bit: null
        # optional, break the rule chain if the condition is met
        break: false
        # condition to process the rule, written as a string
        condition: "x >= 30"
        # optional, on initial core state: process/skip/only
        initial: process
        # OID of an item which is monitored
        oid: sensor:env/temp
        # Alarm operation code, trigger+latch the alarm
        op: TL
        # optional, item state property to monitor (the default is value)
        prop: value
      - condition:
          # a condition written in the machine format
          max: 25.0
          max_eq: false
          min: null
          min_eq: false
        initial: process
        oid: sensor:env/temp
        # clear the alarm
        op: CC
        prop: value
      - condition: "x = 1"
        oid: sensor:env/temp
        # set the alarm in-service if the sensor status is 1
        op: IS
        prop: status
      - condition: "x = -1"
        oid: sensor:env/temp
        # set the alarm out-of-service if the sensor status is -1 (error)
        op: OS
        prop: status

When deployed, the above payload creates an alarm with assigned lvar lvar:alarm/default/NODE_NAME/20/test/AL001. After creation, the majority operations are handled by providing lvar OID.

If a description is defined, it is placed into meta/description field of the item.

Warning

It is highly non-recommended to modify/read alarm lvar values manually as the internal logic may be changed in the further versions of the service. Use the service methods only.

For more complex rule chains it is recommended to use Logic manager or a custom event-processing service.

Warning

Bus event subscriptions are preserved for deleted alarm rules. If alarms are mass-undeployed and not required anymore, it is recommended to restart the service to clear bus subscriptions.

Service instance IDs

For the default functionality, service instances must have IDs set to eva.alarm.default. For custom functionality, any ID can be used.

Setup

Use the template EVA_DIR/share/svc-tpl/svc-tpl-alarms.yml:

# Alarm service
command: svc/eva-svc-alarms
bus:
  path: var/bus.ipc
config:
  # alarm lvar prefix, must be the same for all nodes
  prefix: alarm/default
  # Alarm database, default: runtime/svc_data/<SVC_ID>/alarms.db
  #db: sqlite:///tmp/alarms.db
  #db: postgres://USER:PASSWORD@HOST/DB
  # keep alarm events (seconds), if not set: keep forever
  keep: 604800
  notify:
    # Mailer service to notify via
    mailer_svc: eva.svc.mailer
    # Mailer delay (seconds) to group notifications
    mailer_delay: 5
# for PostgreSQL the service can work under "nobody"
user: eva

Create the service using eva-shell:

eva svc create eva.alarm.1 /opt/eva4/share/svc-tpl/svc-tpl-alarms.yml

or using the bus CLI client:

cd /opt/eva4
cat DEPLOY.yml | ./bin/yml2mp | \
    ./sbin/bus ./var/bus.ipc rpc call eva.core svc.deploy -

(see eva.core::svc.deploy for more info)

EAPI methods

See EAPI commons for the common information about the bus, types, errors and RPC calls.

alarm.deploy

Description

Deploy managed alarms

Parameters

required

Returns

nothing

Parameters

Name

Type

Description

Required

alarms

Vec<struct>

Alarm configurations

yes

alarm.destroy

Description

Destroy a managed alarm

Parameters

required

Returns

nothing

Parameters

Name

Type

Description

Required

i

String

Alarm LVar OID

yes

alarm.get_config

Description

Get managed alarm configuration

Parameters

required

Returns

Alarm configuration

Parameters

Name

Type

Description

Required

i

String

Alarm LVar OID

yes

Return payload example:

{
    "config": {
        "delay": {
            "oos": 1.0,
            "trig": 1.0
        },
        "rules": [
            {
                "bit": null,
                "break": false,
                "condition": {
                    "max": null,
                    "max_eq": false,
                    "min": 30.0,
                    "min_eq": true
                },
                "initial": "process",
                "oid": "sensor:env/temp",
                "op": "TT",
                "prop": "value"
            },
            {
                "bit": null,
                "break": false,
                "condition": {
                    "max": 25.0,
                    "max_eq": false,
                    "min": null,
                    "min_eq": false
                },
                "initial": "process",
                "oid": "sensor:env/temp",
                "op": "CC",
                "prop": "value"
            }
        ]
    },
    "description": "test alarm",
    "group": "test",
    "id": "AL001",
    "level": 20
}

alarm.history

Description

Get alarm history

Parameters

required

Returns

Alarm history

Parameters

Name

Type

Description

Required

i

String

Alarm LVar OID

no

t_start

String/u64

Start time

no

t_end

String/u64

End time

no

node

String

Alarm node

no

level_min

u8

Minimum alarm level

no

level_max

u8

Maximum alarm level

no

group

String

Alarm group

no

id

String

Alarm ID

no

ack

bool

Acknowledged alarms only

no

latch

bool

Latched alarms only

no

oos

bool

Out-of-service alarms only

no

sbd

bool

Suspended-by-design alarms only

no

shelv

bool

Shelved alarms only

no

trig

bool

Triggered alarms only

no

lo

String

Filter by alarm operation

no

losk

String

Filter by alarm operation source kind

no

los

String

Filter by alarm operation source

no

Return payload example:

[
    {
        "ack": false,
        "group": "test",
        "id": "AL001",
        "level": 20,
        "node": "mws1",
        "latch": false,
        "lo": "TT",
        "los": "",
        "losk": "P",
        "oid": "lvar:alarm/default/mws1/20/test/AL001",
        "oos": false,
        "sbd": false,
        "shelv": false,
        "t": 1715732660.061618,
        "trig": true
    },
    {
        "ack": false,
        "group": "test",
        "id": "AL001",
        "level": 20,
        "node": "mws1",
        "latch": false,
        "lo": "CC",
        "los": "",
        "losk": "P",
        "oid": "lvar:alarm/default/mws1/20/test/AL001",
        "oos": false,
        "sbd": false,
        "shelv": false,
        "t": 1715732890.977563,
        "trig": false
    }
]

alarm.list

Description

List managed alarms

Parameters

required

Returns

List of managed alarms

Parameters

Name

Type

Description

Required

level

u8

Alarm level

no

group

String

Alarm group

no

id

String

Alarm ID

no

Return payload example:

[
    {
        "description": "test alarm",
        "group": "test",
        "id": "AL001",
        "level": 20,
        "oid": "lvar:alarm/default/mws1/20/test/AL001"
    },
    {
        "description": null,
        "group": "test",
        "id": "AL002",
        "level": 20,
        "oid": "lvar:alarm/default/mws1/20/test/AL002"
    }
]

alarm.set

Description

Set alarm state

Parameters

required

Returns

nothing

Parameters

Name

Type

Description

Required

i

String

Alarm LVar OID

yes

op

String

Alarm operation code

yes

source_kind

String

Source kind (U/P/R)

yes

source

String

Source

yes

alarm.state

Description

Get alarm states (all)

Parameters

required

Returns

List of alarm states

Parameters

Name

Type

Description

Required

node

String

Alarm node

no

level_min

u8

Alarm level min

no

level_max

u8

Alarm level max

no

group

String

Alarm group

no

id

String

Alarm ID

no

active

bool

Active/inactive alarms

no

current

String

Current alarm state

no

u

String

View alarm state as a user (including subscriptions)

no

Return payload example:

[
    {
        "active": false,
        "current": "CC",
        "description": "test alarm",
        "group": "test",
        "id": "AL001",
        "level": 20,
        "node": "mws1",
        "oid": "lvar:alarm/default/mws1/20/test/AL001",
        "subscribed_email": [
          "TT",
          "TL",
          "OS"
        ]
    },
    {
        "active": true,
        "current": "TL",
        "description": null,
        "group": "test",
        "id": "AL002",
        "level": 20,
        "node": "mws1",
        "oid": "lvar:alarm/default/mws1/20/test/AL002",
        "subscribed_email": [
          "TT",
          "TL",
          "OS"
        ]
    }
]

alarm.subscribe

Description

Subscribe a user to alarm state changes

Parameters

required

Returns

nothing

Parameters

Name

Type

Description

Required

u

String

User account

yes

oid_mask

String/Vec<String>

Alarm OID mask

yes

nk

String

Notification kind

yes

op

String/Vec<String>

Alarm operation code

yes

alarm.summary

Description

Get alarm summary

Parameters

none

Returns

Alarm summary

Return payload example:

{
    "active": 1,
    "active_by_node": {
        "mws1": 1
    }
}

alarm.undeploy

Description

Undeploy managed alarms

Parameters

required

Returns

nothing

Parameters

Name

Type

Description

Required

alarms

Vec<struct>

Alarm configurations

yes

alarm.unsubscribe

Description

Unsubscribe a user from alarm state changes

Parameters

required

Returns

nothing

Parameters

Name

Type

Description

Required

u

String

User account

yes

oid_mask

String/Vec<String>

Alarm OID mask

yes

nk

String

Notification kind

yes

op

String/Vec<String>

Alarm operation code

yes

HTTP API

The service provides certain methods via extra calls (the methods must be called e.g. as x::eva.alarm.default::summary)

To use HTTP API methods, a user must have read or write access to alarm lvars.

ack

Description

Acknowledge an alarm

Parameters

required

Returns

nothing

Parameters

Name

Type

Description

Required

k

String

valid API key/token

yes

i

String

Alarm OID

yes

http

POST /jrpc HTTP/1.1
accept: application/json
content-type: application/json
host: localhost:7727

{
  "id": 1,
  "jsonrpc": "2.0",
  "method": "ack",
  "params": {
    "i": "lvar:alarm/default/mws1/20/test/AL001",
    "k": "secretkey"
  }
}

curl

curl -i -X POST http://localhost:7727/jrpc -H "Accept: application/json" -H "Content-Type: application/json" --data-raw '{"id": 1, "jsonrpc": "2.0", "method": "ack", "params": {"i": "lvar:alarm/default/mws1/20/test/AL001", "k": "secretkey"}}'

wget

wget -S -O- http://localhost:7727/jrpc --header="Accept: application/json" --header="Content-Type: application/json" --post-data='{"id": 1, "jsonrpc": "2.0", "method": "ack", "params": {"i": "lvar:alarm/default/mws1/20/test/AL001", "k": "secretkey"}}'

httpie

echo '{
  "id": 1,
  "jsonrpc": "2.0",
  "method": "ack",
  "params": {
    "i": "lvar:alarm/default/mws1/20/test/AL001",
    "k": "secretkey"
  }
}' | http POST http://localhost:7727/jrpc Accept:application/json Content-Type:application/json

python-requests

requests.post('http://localhost:7727/jrpc', headers={'Accept': 'application/json', 'Content-Type': 'application/json'}, json={'id': 1, 'jsonrpc': '2.0', 'method': 'ack', 'params': {'i': 'lvar:alarm/default/mws1/20/test/AL001', 'k': 'secretkey'}})

response

HTTP/1.1 200 OK
cache-control: no-cache, no-store
content-length: 58
content-type: application/json
date: Thu, 13 Aug 2021 00:00:00 GMT
expires: 0
pragma: no-cache

{
    "id": 1,
    "jsonrpc": "2.0",
    "result": null
}

history

Description

Get alarm history

Parameters

required

Returns

Alarm history

Parameters

Name

Type

Description

Required

k

String

valid API key/token

yes

filter

History filter structure (see alarm.history)

Alarm history filter

no

http

POST /jrpc HTTP/1.1
accept: application/json
content-type: application/json
host: localhost:7727

{
  "id": 1,
  "jsonrpc": "2.0",
  "method": "history",
  "params": {
    "filter": {
      "node": "mws1"
    },
    "k": "secretkey"
  }
}

curl

curl -i -X POST http://localhost:7727/jrpc -H "Accept: application/json" -H "Content-Type: application/json" --data-raw '{"id": 1, "jsonrpc": "2.0", "method": "history", "params": {"filter": {"node": "mws1"}, "k": "secretkey"}}'

wget

wget -S -O- http://localhost:7727/jrpc --header="Accept: application/json" --header="Content-Type: application/json" --post-data='{"id": 1, "jsonrpc": "2.0", "method": "history", "params": {"filter": {"node": "mws1"}, "k": "secretkey"}}'

httpie

echo '{
  "id": 1,
  "jsonrpc": "2.0",
  "method": "history",
  "params": {
    "filter": {
      "node": "mws1"
    },
    "k": "secretkey"
  }
}' | http POST http://localhost:7727/jrpc Accept:application/json Content-Type:application/json

python-requests

requests.post('http://localhost:7727/jrpc', headers={'Accept': 'application/json', 'Content-Type': 'application/json'}, json={'id': 1, 'jsonrpc': '2.0', 'method': 'history', 'params': {'filter': {'node': 'mws1'}, 'k': 'secretkey'}})

response

HTTP/1.1 200 OK
cache-control: no-cache, no-store
content-length: 905
content-type: application/json
date: Thu, 13 Aug 2021 00:00:00 GMT
expires: 0
pragma: no-cache

{
    "id": 1,
    "jsonrpc": "2.0",
    "result": [
      {
          "ack": false,
          "group": "test",
          "id": "AL001",
          "level": 20,
          "node": "mws1",
          "latch": false,
          "lo": "TT",
          "los": "",
          "losk": "P",
          "oid": "lvar:alarm/default/mws1/20/test/AL001",
          "oos": false,
          "sbd": false,
          "shelv": false,
          "t": 1715732660.061618,
          "trig": true
      },
      {
          "ack": false,
          "group": "test",
          "id": "AL001",
          "level": 20,
          "node": "mws1",
          "latch": false,
          "lo": "CC",
          "los": "",
          "losk": "P",
          "oid": "lvar:alarm/default/mws1/20/test/AL001",
          "oos": false,
          "sbd": false,
          "shelv": false,
          "t": 1715732890.977563,
          "trig": false
      }
  ]
}

shelv

Description

Shelve an alarm

Parameters

required

Returns

nothing

Parameters

Name

Type

Description

Required

k

String

valid API key/token

yes

i

String

Alarm OID

yes

http

POST /jrpc HTTP/1.1
accept: application/json
content-type: application/json
host: localhost:7727

{
  "id": 1,
  "jsonrpc": "2.0",
  "method": "shelv",
  "params": {
    "i": "lvar:alarm/default/mws1/20/test/AL001",
    "k": "secretkey"
  }
}

curl

curl -i -X POST http://localhost:7727/jrpc -H "Accept: application/json" -H "Content-Type: application/json" --data-raw '{"id": 1, "jsonrpc": "2.0", "method": "shelv", "params": {"i": "lvar:alarm/default/mws1/20/test/AL001", "k": "secretkey"}}'

wget

wget -S -O- http://localhost:7727/jrpc --header="Accept: application/json" --header="Content-Type: application/json" --post-data='{"id": 1, "jsonrpc": "2.0", "method": "shelv", "params": {"i": "lvar:alarm/default/mws1/20/test/AL001", "k": "secretkey"}}'

httpie

echo '{
  "id": 1,
  "jsonrpc": "2.0",
  "method": "shelv",
  "params": {
    "i": "lvar:alarm/default/mws1/20/test/AL001",
    "k": "secretkey"
  }
}' | http POST http://localhost:7727/jrpc Accept:application/json Content-Type:application/json

python-requests

requests.post('http://localhost:7727/jrpc', headers={'Accept': 'application/json', 'Content-Type': 'application/json'}, json={'id': 1, 'jsonrpc': '2.0', 'method': 'shelv', 'params': {'i': 'lvar:alarm/default/mws1/20/test/AL001', 'k': 'secretkey'}})

response

HTTP/1.1 200 OK
cache-control: no-cache, no-store
content-length: 58
content-type: application/json
date: Thu, 13 Aug 2021 00:00:00 GMT
expires: 0
pragma: no-cache

{
    "id": 1,
    "jsonrpc": "2.0",
    "result": null
}

state

Description

Get alarm states (all)

Parameters

required

Returns

List of alarm states

Parameters

Name

Type

Description

Required

k

String

valid API key/token

yes

filter

State filter structure (see alarm.state)

Alarm state filter

no

http

POST /jrpc HTTP/1.1
accept: application/json
content-type: application/json
host: localhost:7727

{
  "id": 1,
  "jsonrpc": "2.0",
  "method": "state",
  "params": {
    "filter": {
      "node": "mws1"
    },
    "k": "secretkey"
  }
}

curl

curl -i -X POST http://localhost:7727/jrpc -H "Accept: application/json" -H "Content-Type: application/json" --data-raw '{"id": 1, "jsonrpc": "2.0", "method": "state", "params": {"filter": {"node": "mws1"}, "k": "secretkey"}}'

wget

wget -S -O- http://localhost:7727/jrpc --header="Accept: application/json" --header="Content-Type: application/json" --post-data='{"id": 1, "jsonrpc": "2.0", "method": "state", "params": {"filter": {"node": "mws1"}, "k": "secretkey"}}'

httpie

echo '{
  "id": 1,
  "jsonrpc": "2.0",
  "method": "state",
  "params": {
    "filter": {
      "node": "mws1"
    },
    "k": "secretkey"
  }
}' | http POST http://localhost:7727/jrpc Accept:application/json Content-Type:application/json

python-requests

requests.post('http://localhost:7727/jrpc', headers={'Accept': 'application/json', 'Content-Type': 'application/json'}, json={'id': 1, 'jsonrpc': '2.0', 'method': 'state', 'params': {'filter': {'node': 'mws1'}, 'k': 'secretkey'}})

response

HTTP/1.1 200 OK
cache-control: no-cache, no-store
content-length: 781
content-type: application/json
date: Thu, 13 Aug 2021 00:00:00 GMT
expires: 0
pragma: no-cache

{
    "id": 1,
    "jsonrpc": "2.0",
    "result": [
      {
          "active": false,
          "current": "CC",
          "description": "test alarm",
          "group": "test",
          "id": "AL001",
          "level": 20,
          "node": "mws1",
          "oid": "lvar:alarm/default/mws1/20/test/AL001",
          "subscribed_email": [
            "TT",
            "TL",
            "OS"
          ]
      },
      {
          "active": true,
          "current": "TL",
          "description": null,
          "group": "test",
          "id": "AL002",
          "level": 20,
          "node": "mws1",
          "oid": "lvar:alarm/default/mws1/20/test/AL002",
          "subscribed_email": [
            "TT",
            "TL",
            "OS"
          ]
      }
  ]
}

subscribe

Description

Subscribe a user to alarm state changes

Parameters

required

Returns

nothing

Parameters

Name

Type

Description

Required

k

String

valid API key/token

yes

oid_mask

String/Vec<String>

Alarm OID mask

yes

nk

String

Notification kind

yes

op

String/Vec<String>

Alarm operation code

yes

http

POST /jrpc HTTP/1.1
accept: application/json
content-type: application/json
host: localhost:7727

{
  "id": 1,
  "jsonrpc": "2.0",
  "method": "subscribe",
  "params": {
    "k": "secretkey",
    "nk": "M",
    "oid_mask": "lvar:alarm/default/mws1/20/test/AL001",
    "op": [
      "TT",
      "TL",
      "OS"
    ]
  }
}

curl

curl -i -X POST http://localhost:7727/jrpc -H "Accept: application/json" -H "Content-Type: application/json" --data-raw '{"id": 1, "jsonrpc": "2.0", "method": "subscribe", "params": {"k": "secretkey", "nk": "M", "oid_mask": "lvar:alarm/default/mws1/20/test/AL001", "op": ["TT", "TL", "OS"]}}'

wget

wget -S -O- http://localhost:7727/jrpc --header="Accept: application/json" --header="Content-Type: application/json" --post-data='{"id": 1, "jsonrpc": "2.0", "method": "subscribe", "params": {"k": "secretkey", "nk": "M", "oid_mask": "lvar:alarm/default/mws1/20/test/AL001", "op": ["TT", "TL", "OS"]}}'

httpie

echo '{
  "id": 1,
  "jsonrpc": "2.0",
  "method": "subscribe",
  "params": {
    "k": "secretkey",
    "nk": "M",
    "oid_mask": "lvar:alarm/default/mws1/20/test/AL001",
    "op": [
      "TT",
      "TL",
      "OS"
    ]
  }
}' | http POST http://localhost:7727/jrpc Accept:application/json Content-Type:application/json

python-requests

requests.post('http://localhost:7727/jrpc', headers={'Accept': 'application/json', 'Content-Type': 'application/json'}, json={'id': 1, 'jsonrpc': '2.0', 'method': 'subscribe', 'params': {'k': 'secretkey', 'nk': 'M', 'oid_mask': 'lvar:alarm/default/mws1/20/test/AL001', 'op': ['TT', 'TL', 'OS']}})

response

HTTP/1.1 200 OK
cache-control: no-cache, no-store
content-length: 67
content-type: application/json
date: Thu, 13 Aug 2021 00:00:00 GMT
expires: 0
pragma: no-cache

{
  "id": 1,
  "jsonrpc": "2.0",
  "result": {
    "ok": true
  }
}

summary

Description

Get alarm summary

Parameters

required

Returns

Alarm summary

Parameters

Name

Type

Description

Required

k

String

valid API key/token

yes

http

POST /jrpc HTTP/1.1
accept: application/json
content-type: application/json
host: localhost:7727

{
  "id": 1,
  "jsonrpc": "2.0",
  "method": "summary",
  "params": {
    "k": "secretkey"
  }
}

curl

curl -i -X POST http://localhost:7727/jrpc -H "Accept: application/json" -H "Content-Type: application/json" --data-raw '{"id": 1, "jsonrpc": "2.0", "method": "summary", "params": {"k": "secretkey"}}'

wget

wget -S -O- http://localhost:7727/jrpc --header="Accept: application/json" --header="Content-Type: application/json" --post-data='{"id": 1, "jsonrpc": "2.0", "method": "summary", "params": {"k": "secretkey"}}'

httpie

echo '{
  "id": 1,
  "jsonrpc": "2.0",
  "method": "summary",
  "params": {
    "k": "secretkey"
  }
}' | http POST http://localhost:7727/jrpc Accept:application/json Content-Type:application/json

python-requests

requests.post('http://localhost:7727/jrpc', headers={'Accept': 'application/json', 'Content-Type': 'application/json'}, json={'id': 1, 'jsonrpc': '2.0', 'method': 'summary', 'params': {'k': 'secretkey'}})

response

HTTP/1.1 200 OK
cache-control: no-cache, no-store
content-length: 132
content-type: application/json
date: Thu, 13 Aug 2021 00:00:00 GMT
expires: 0
pragma: no-cache

{
    "id": 1,
    "jsonrpc": "2.0",
    "result": {
      "active": 1,
      "active_by_node": {
          "mws1": 1
      }
  }
}

unshelv

Description

Unshelve an alarm

Parameters

required

Returns

nothing

Parameters

Name

Type

Description

Required

k

String

valid API key/token

yes

i

String

Alarm OID

yes

http

POST /jrpc HTTP/1.1
accept: application/json
content-type: application/json
host: localhost:7727

{
  "id": 1,
  "jsonrpc": "2.0",
  "method": "unshelv",
  "params": {
    "i": "lvar:alarm/default/mws1/20/test/AL001",
    "k": "secretkey"
  }
}

curl

curl -i -X POST http://localhost:7727/jrpc -H "Accept: application/json" -H "Content-Type: application/json" --data-raw '{"id": 1, "jsonrpc": "2.0", "method": "unshelv", "params": {"i": "lvar:alarm/default/mws1/20/test/AL001", "k": "secretkey"}}'

wget

wget -S -O- http://localhost:7727/jrpc --header="Accept: application/json" --header="Content-Type: application/json" --post-data='{"id": 1, "jsonrpc": "2.0", "method": "unshelv", "params": {"i": "lvar:alarm/default/mws1/20/test/AL001", "k": "secretkey"}}'

httpie

echo '{
  "id": 1,
  "jsonrpc": "2.0",
  "method": "unshelv",
  "params": {
    "i": "lvar:alarm/default/mws1/20/test/AL001",
    "k": "secretkey"
  }
}' | http POST http://localhost:7727/jrpc Accept:application/json Content-Type:application/json

python-requests

requests.post('http://localhost:7727/jrpc', headers={'Accept': 'application/json', 'Content-Type': 'application/json'}, json={'id': 1, 'jsonrpc': '2.0', 'method': 'unshelv', 'params': {'i': 'lvar:alarm/default/mws1/20/test/AL001', 'k': 'secretkey'}})

response

HTTP/1.1 200 OK
cache-control: no-cache, no-store
content-length: 58
content-type: application/json
date: Thu, 13 Aug 2021 00:00:00 GMT
expires: 0
pragma: no-cache

{
    "id": 1,
    "jsonrpc": "2.0",
    "result": null
}

unsubscribe

Description

Unsubscribe a user from alarm state changes

Parameters

required

Returns

nothing

Parameters

Name

Type

Description

Required

k

String

valid API key/token

yes

oid_mask

String/Vec<String>

Alarm OID mask

yes

nk

String

Notification kind

yes

op

String/Vec<String>

Alarm operation code

yes

http

POST /jrpc HTTP/1.1
accept: application/json
content-type: application/json
host: localhost:7727

{
  "id": 1,
  "jsonrpc": "2.0",
  "method": "unsubscribe",
  "params": {
    "k": "secretkey",
    "nk": "M",
    "oid_mask": "lvar:alarm/default/mws1/20/test/AL001",
    "op": [
      "TT",
      "TL",
      "OS"
    ]
  }
}

curl

curl -i -X POST http://localhost:7727/jrpc -H "Accept: application/json" -H "Content-Type: application/json" --data-raw '{"id": 1, "jsonrpc": "2.0", "method": "unsubscribe", "params": {"k": "secretkey", "nk": "M", "oid_mask": "lvar:alarm/default/mws1/20/test/AL001", "op": ["TT", "TL", "OS"]}}'

wget

wget -S -O- http://localhost:7727/jrpc --header="Accept: application/json" --header="Content-Type: application/json" --post-data='{"id": 1, "jsonrpc": "2.0", "method": "unsubscribe", "params": {"k": "secretkey", "nk": "M", "oid_mask": "lvar:alarm/default/mws1/20/test/AL001", "op": ["TT", "TL", "OS"]}}'

httpie

echo '{
  "id": 1,
  "jsonrpc": "2.0",
  "method": "unsubscribe",
  "params": {
    "k": "secretkey",
    "nk": "M",
    "oid_mask": "lvar:alarm/default/mws1/20/test/AL001",
    "op": [
      "TT",
      "TL",
      "OS"
    ]
  }
}' | http POST http://localhost:7727/jrpc Accept:application/json Content-Type:application/json

python-requests

requests.post('http://localhost:7727/jrpc', headers={'Accept': 'application/json', 'Content-Type': 'application/json'}, json={'id': 1, 'jsonrpc': '2.0', 'method': 'unsubscribe', 'params': {'k': 'secretkey', 'nk': 'M', 'oid_mask': 'lvar:alarm/default/mws1/20/test/AL001', 'op': ['TT', 'TL', 'OS']}})

response

HTTP/1.1 200 OK
cache-control: no-cache, no-store
content-length: 67
content-type: application/json
date: Thu, 13 Aug 2021 00:00:00 GMT
expires: 0
pragma: no-cache

{
  "id": 1,
  "jsonrpc": "2.0",
  "result": {
    "ok": true
  }
}
